PXP6011/22S/CR/0910 | BULGIN

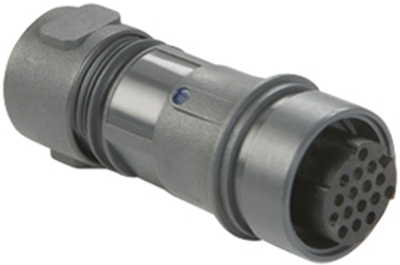

Jack, 22 pole, crimp connection, push pull, straight, PXP6011/22S/CR/0910
Unit Price (€ / pc.)
22.0388 € *
Available in 5 Days: 74 pcs. - if ordered today
Total Price:
22.04 € *
Price list
Quantity
Price per unit*
1 pcs.
22.0388 €
10 pcs.
20.4085 €
25 pcs.
19.0043 €
50 pcs.
17.2193 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector for harsh environments, series 6000, type Bulgin PXP6.
With push/pull lock and 30° twist lock against unintentional disconnection, water-proof and dust-proof to EN 60529; Degree of protection: IP 68. Insulation resistance: min. 10 Mohm at 500 V AC/DC. Contact resistance: max. 10 mohm. Material: PC/PBT, halogen-free. Inflammability class: UL 94 V-0. Contacts: nickel-plated brass (2 A gold-plated). Seals: silicon. Operating temperatures: - 40 to +120 °C. Cable entry: 4.0 to 10 mm. Certifications: CSA, UL.
Flex in-line cable connector, socket contacts, type PXP6011.
Type: PXP6011/22S/CR/0910, 22-pole, 60 V AC/DC/2.0 A, crimp.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | jack | |
| Pin number | 22 pole | |
| Type of locking | push pull | |
| Shell Material | PBT | |
| Contact connection | crimp connection | |
| Orientation | straight | |
| Additional parts | unequipped | |
| Cable diameter | 4 to 10 mm | |
| Assembly | cable assembly |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
