PXP6011/03P/ST/0507 | BULGIN

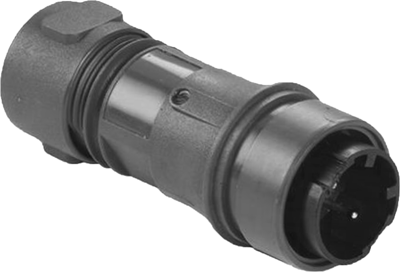

Jack, 3 pole, screw connection, push pull, straight, PXP6011/03P/ST/0507
Unit Price (€ / pc.)
23.5858 € *
Available: 0 pcs.
Available in 5 Days: 57 pcs.
Leadtime: 1 Week **
Total Price:
23.59 € *
Price list
Quantity
Price per unit*
4 pcs.
23.5858 €
22 pcs.
19.8611 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector for harsh environments, series 6000, type Bulgin PXP6.
With push/pull lock and 30° twist lock against unintentional disconnection, water-proof and dust-proof to EN 60529; Degree of protection: IP 68. Insulation resistance: min. 10 Mohm at 500 V AC/DC. Contact resistance: max. 10 mohm. Material: PC/PBT, halogen-free. Inflammability class: UL 94 V-0. Contacts: nickel-plated brass (2 A gold-plated). Seals: silicon. Operating temperatures: - 40 to +120 °C. Cable entry: 4.0 to 10 mm. Certifications: CSA, UL.
Jacks with male contacts, type PXP6011.
Type: PXP6011/03P/ST/0507, 3-pole, 277 V AC/DC/12 A, screw termination
Technical specifications
| Version | jack | |
| Additional parts | equipped | |
| Shell Material | PBT | |
| Cable diameter | 4 to 10 mm | |
| Contact connection | screw connection | |
| contact surface | nickel-plated | |
| Cable cross-section | 1.5 mm² | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Type of locking | push pull |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
