PXP4010/06S/6570 | BULGIN

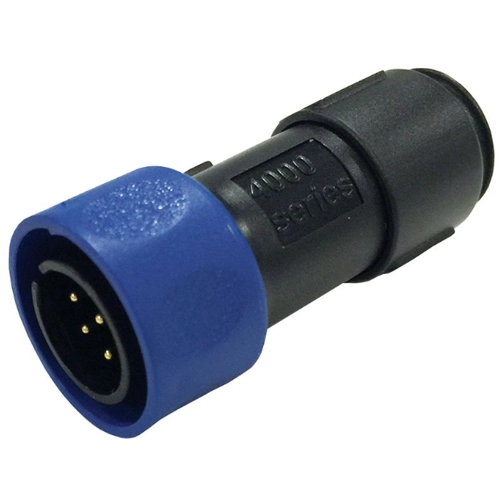

Jack, 6 pole, solder cup, bayonet locking, straight, PXP4010/06S/6570
Unit Price (€ / pc.)
11.1146 € *
Available in 5 Days: 30 pcs. - if ordered today
Total Price:
11.11 € *
Price list
Quantity
Price per unit*
1 pcs.
11.1146 €
10 pcs.
10.2221 €
50 pcs.
9.3058 €
100 pcs.
8.3776 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket housing, PXP4010/06S/6570, Bulgin
Flex cable connector
Features
- Mates with flex cable connector
- Socket
- For inline cable connection
- Contacts supplied separately
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder cup | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Shell Material | PA | |
| Additional parts | unequipped | |
| Cable diameter | 6.5 to 7 mm | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Version | socket housing | |
| Type of locking | bayonet locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
