PXP4010/10S/6570 | BULGIN
Jack, 10 pole, solder cup, bayonet locking, straight, PXP4010/10S/6570
Unit Price (€ / pc.)
13.4351 € *
Available: 0 pcs.
Available in 5 Days: 25 pcs.
Leadtime: 1 Week **
Total Price:
13.44 € *
Price list
Quantity
Price per unit*
10 pcs.
13.4351 €
40 pcs.
11.3050 €
*incl. VAT plus shipping costs
**Subject to prior sale

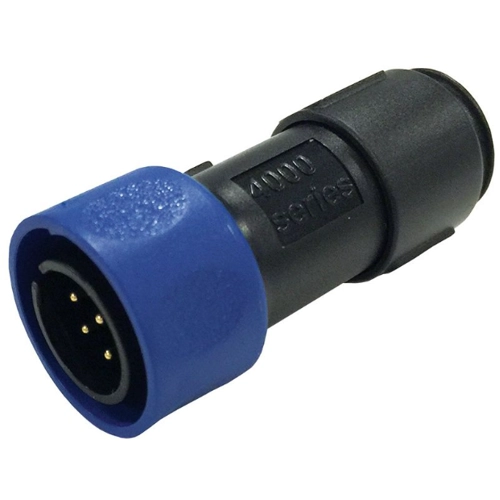

Socket housing, PXP4010/10S/6570, Bulgin
Flex cable connector
Features
- Mates with flex cable connector
- Socket
- For inline cable connection
- Contacts supplied separately
Technical specifications
| Version | socket housing | |
| Additional parts | unequipped | |
| Shell Material | polyamide | |
| Cable diameter | 6.5 to 7 mm | |
| Contact connection | solder cup | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | straight | |
| Pin number | 10 pole | |
| Type of locking | bayonet locking |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
