PXM6010/02P/ST/0507 | BULGIN

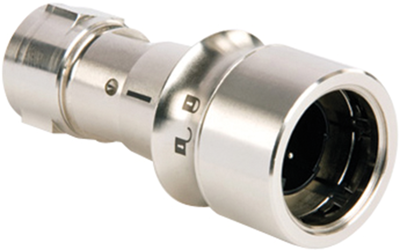

Plug, 2 pole, screw connection, push pull, straight, PXM6010/02P/ST/0507
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
58.6432 € *
Standard delivery time from the manufacturer is: 18 Weeks
Total Price:
58.64 € *
Price list
Quantity
Price per unit*
1 pcs.
58.6432 €
2 pcs.
54.8590 €
5 pcs.
51.5270 €
10 pcs.
47.8975 €
*incl. VAT plus shipping costs
Subject to prior sale
Connectors with male contacts, type PXM6010.
Metal Version, with push/pull lock and 30° twist lock against unintentional disconnection, water-proof and dust-proof to EN 60529.
Number of poles: 2-pole
Rated voltage: 277 V AC/DC
Rated current: 16 A
Connections: Screw termination
Degree of protection: IP 68
Insulation resistance: min. 10 Mohm at 500 V AC/DC
Contact resistance: max. 10 mohm
Material: PC/PBT, halogen-free
Inflammability class: UL 94 V-0
Contacts: nickel-plated brass
Housing: nickel-plated brass
Seals: Silicon
Operating temperatures: - 40 to +120 °C
Cable entry: 4.0 to 10 mm
Certifications: CSA, UL
Type: PXM6010/02P/ST/0507
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 1.5 mm² | |
| Pin number | 2 pole | |
| Orientation | straight | |
| Contact connection | screw connection | |
| Type of locking | push pull | |
| Cable diameter | 5 to 7 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | nickel-plated | |
| Shell Material | brass |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
