PX0931/07/S | BULGIN

Panel plug, 7 pole, screw connection, screw locking, straight, PX0931/07/S

Order No.: 70F5332
EAN: 4099889738551
MPN:
PX0931/07/S
PX0931/07/S BULGIN Other Circular Connectors

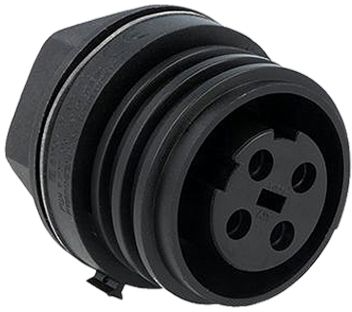

Image may differ
Unit Price (€ / pc.)
70.6622 € *
Available in 5 Days: 10 pcs. - if ordered today
Total Price:
211.99 € *
Price list
Quantity
Price per unit*
3 pcs.
70.6622 €
9 pcs.
60.9875 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector series 900, type Bulgin PX09.

With screw terminals; Contact resistance: max. 10 mohm. Material: polyamide to UL 94 V-0. Contacts: nickel-plated brass. Degree of protection: IP 68. Operating temperatures: –40 to +85 °C. Certifications: CSA (rated current 25 to 30 A), UL, VDE, CCC (rated current 10 to 32 A).

Front panel connectors with female contacts, type PX0931.

Technical attributes (type, number of poles, rated voltage/current): PX0931/07/S, 7-pole, 430 V AC/DC/32 A

Technical specifications
contact surface nickel-plated
Contact connection screw connection
Shell Material PA
Additional parts equipped
Pin number 7 pole
Orientation straight
Version panel plug
Type of locking screw locking
Assembly PCB mounting
Logistics
Customs tariff number 85366990
Country of origin TN
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
