FX0457 | BULGIN
Fuse holder, 5 x 20 mm, 10 A, 250 V, PCB mounting, FX0457
Unit Price (€ / pc.)
5.2836 € *
Available in 5 Days: 2,793 pcs. - if ordered today
Total Price:
5.28 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2836 €
10 pcs.
4.8552 €
50 pcs.
4.4268 €
100 pcs.
3.9746 €
*incl. VAT plus shipping costs
Subject to prior sale

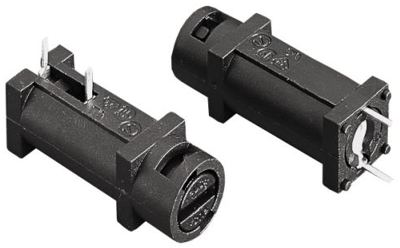

Fuse holders for PCB mounting, type Bulgin FX045.
For G fuses size 5 x 20 mm, with bayonet lock, opening with screwdriver; Rated voltage: 250 V. Rated current: 10 A.
Type: FX0457, axial
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 10 A | |
| For Fuse | 5 x 20 mm | |
| Touch protection | PC2 | |
| Version of the cap | slotted | |
| Type of mounting | PCB mounting | |
| Rated voltage | 250 V | |
| Connection | PCB connection | |
| Version | closed |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85363010 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
