FX0456 | BULGIN
Fuse holder, 5 x 20 mm, 10 A, 250 V, PCB mounting, FX0456
Unit Price (€ / pc.)
4.4625 € *
Available: 473 pcs.
Leadtime: 20 Weeks **
Total Price:
4.46 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4625 €
10 pcs.
3.9151 €
100 pcs.
3.4391 €
250 pcs.
3.3082 €
1000 pcs.
3.0940 €
*incl. VAT plus shipping costs
**Subject to prior sale

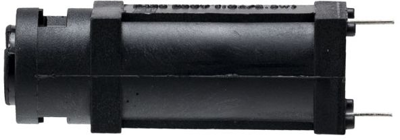

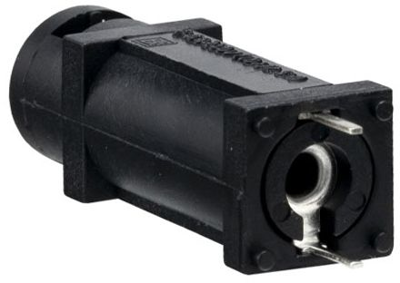

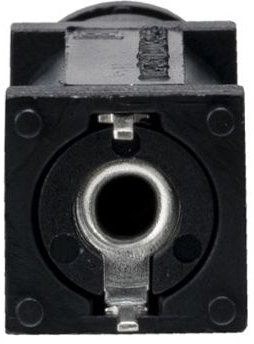

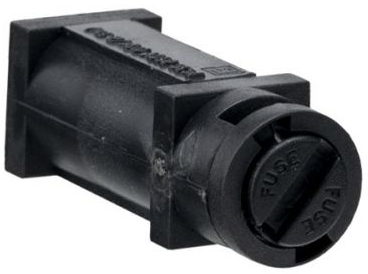

Fuse holders for PCB mounting, type Bulgin FX045.
For G fuses size 5 x 20 mm, with bayonet lock, opening with screwdriver; Rated voltage: 250 V. Rated current: 10 A.
Type: FX0456, radial
Technical specifications
| Connection | PCB connection | |
| Version of the cap | slotted | |
| Version | closed | |
| Type of mounting | PCB mounting | |
| Touch protection | PC2 | |
| Installation diameter | 1.3 mm | |
| For Fuse | 5 x 20 mm | |
| Rated voltage | 250 V | |
| Rated current | 10 A | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Country of origin | TN |
| Customs tariff number | 85363010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
