PX0675/63 | BULGIN

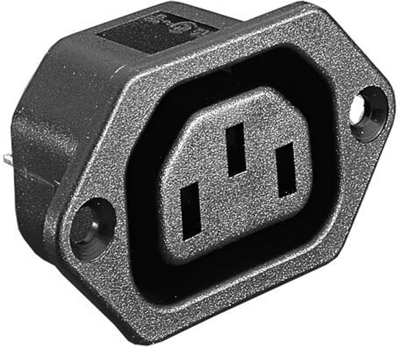

Panel socket F, 3 pole, screw mounting, plug-in connection, black, PX0675/63
Unit Price (€ / pc.)
2.8560 € *
Available: 64 pcs.
Available in 5 Days: 14,883 pcs. - if ordered today
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8560 €
25 pcs.
2.4514 €
100 pcs.
2.2372 €
250 pcs.
2.1420 €
1000 pcs.
1.9397 €
*incl. VAT plus shipping costs
Subject to prior sale
Flange mount IEC power outlets, type Bulgin PX0675.
Flange mount; Operating voltage: 250 VAC. Operating current: 10 A. Termination: 6.3 mm tab. Contact resistance: max. 10 mohm. Operating temperatures: –40 °C to +70 °C. Certifications: ENEC 10, VDE, UL, CSA. Inflammability: UL 94 V-0.
Type: PX0675/63, flange mount IEC power outlet
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Switch illuminated | No | |
| Assembly | screw mounting | |
| Rated voltage UL/CSA | 250 V | |
| Rated current UL/CSA | 15 A | |
| Pin temperature | 70 °C | |
| Fuse holder present | No | |
| Design | straight | |
| Colour | black | |
| Pin number | 3 pole | |
| Rated voltage IEC | 250 V | |
| Product type | panel socket | |
| Line filter present | No | |
| IEC designation | F | |
| Rated current IEC | 10 A | |
| Connection | plug-in connection | |
| Power switch available | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
