BVB01/Z0000/01 | BULGIN

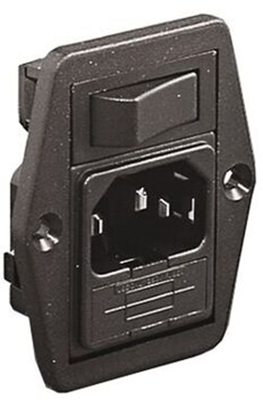

Combination element plug C14, 3 pole, screw mounting, plug-in connection, black, BVB01/Z0000/01

Order No.: 41F1754
EAN: 4099889863154
MPN:
BVB01/Z0000/01
Series: IEC Connectors
BVB01/Z0000/01 BULGIN Device Connectors Image 1
BVB01/Z0000/01 BULGIN Device Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.163 € *
Available in 5 Days: 238 pcs. - if ordered today
Total Price:
9.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.163 €

Plug, BVB01/Z0000/01, BULGIN

It has a compact design that occupies the minimum of panel area and a single rectangular mounting hole, it offers easy installation for this mains power entry module.

Features

  • Fused inlet with 6.3 mm tags
  • Screw fixed to panel
Technical specifications
Filter Property Value
Pin temperature 70 °C
Fuse holder present Yes
Assembly screw mounting
Rated voltage UL/CSA 250 V
Connection plug-in connection
Power switch available Yes
Number of poles switch 1 pole
Design straight
Version plug
Pin number 3 pole
IEC designation C14
Switch illuminated No
Rated current UL/CSA 10 A
Rated voltage IEC 250 V
Line filter present No
Product type combination element
Swich colour black
Rated current IEC 10 A
Colour black
Logistics
Property Value
Country of origin TN
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
