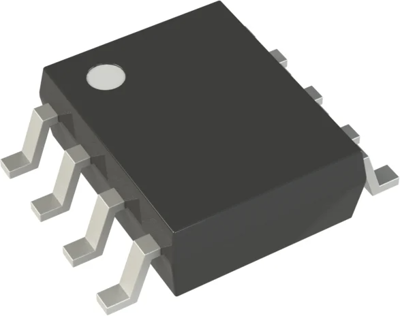

HCPL-0211-000E | Broadcom

Logic Gate Optocoupler, HCPL-0211-000E, Broadcom

The detectors have totem pole output stages and optical receiver input stages with built-in Schmitt triggers to provide logic-compatible waveforms, eliminating the need for additional waveshaping. A superior internal shield on the HCPL-2211/12, HCPL-0211, HCPL-2232, and HCNW2211 guarantees common mode transient immunity of 10 kV/µs at a common mode voltage of 1000V.

Features

• 300 ns propagation delay guaranteed over the full temperature range
• 5 Mbd typical signal rate
• Hysteresis

Applications

• Isolation of high-speed logic systems
• Computer-peripheral interfaces
• Microprocessor system interfaces
• Ground loop elimination
• Pulse transformer replacement
• High-speed line receiver
• Power control systems
