03221000.H | BOX4U

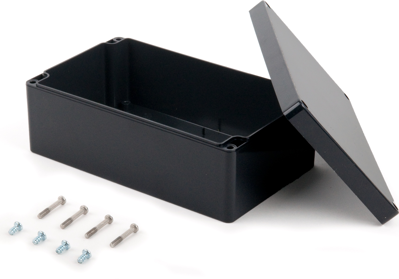

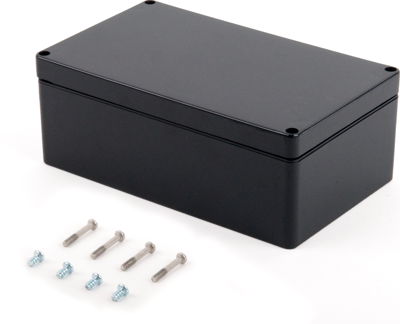

ABS enclosure, (L x W x H) 200 x 120 x 75 mm, gray, IP66, 03221000.H
Unit Price (€ / pc.)
16.8742 € *
Standard delivery time from the manufacturer is: 2 Weeks
ABS Industrial enclosure, 03221000.H, BOX4U
Industrial enclosure made of ABS, cover screws screwed into high-quality threaded bushes, no thread wear even after repeated opening.
The enclosure can be mounted on the wall using the screw channels.
Large processing areas and versatile mounting options for connectors, switches and buttons. PCBs can be securely fastened via screw domes in the lower section.
Features
- Protection class: IP66 / DIN EN 60529
- Colour: slate grey similar to RAL 7015
- Factory fitted round cord seal
- Temperature resistance: -25°C / +70°C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Width | 120 mm | |
| Material | ABS | |
| Degree of protection (IP) | IP66 | |
| Height | 75 mm | |
| Length | 200 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
