SMBJ70CA | Bourns Electronics GmbH

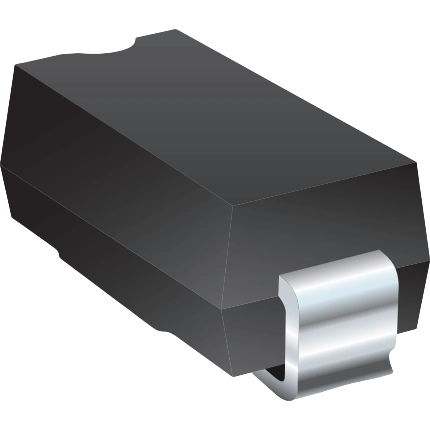

SMD voltage suppressor diode, bidirectional, 600 W, 70 V, DO-214AA, Bourns Electronics GmbH SMBJ70CA
Voltage suppressor diode, SMBJ70CA, Bourns Electronics GmbH
The SMBJ70CA transient voltage suppressor diode for surge and ESD protection applications, in compact chip package DO-214AA (SMB) size format.
Features
- Power dissipation: 600 watts
- RoHS compliant
Applications
- Electrostatic Discharge (ESD)
- Electrical Fast Transient (EFT)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | bidirectional | |
| Pulse power loss | 600 W | |
| Rated blocking voltage | 70 V | |
| Number of diodes | 1 | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C | |
| Assembly | SMD | |
| Enclosure | DO-214AA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| MSL | MSL 1 |
| Country of origin | TW |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
