CDSOT23-T15C | Bourns Electronics GmbH

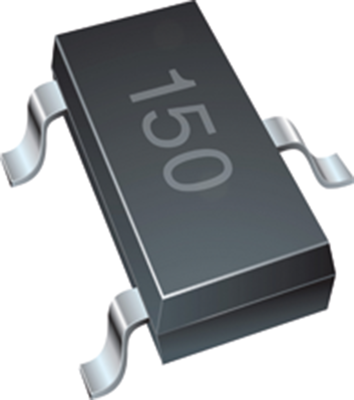

SMD TVS diode, bidirectional, 500 W, 15 V, SOT-23, Bourns Electronics GmbH CDSOT23-T15C
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.2356 € *
Standard delivery time from the manufacturer is: 20 Weeks
Suppressor diode arrays, type Bourns CDSOT23.
Bidirectional version; Package: SOT23. Pulse peak losses: 500 W. Operating temperatures: –55 to +150 °C.
Technical attributes (type, rated voltage, breakdown voltage): CDSOT23–T15C, 15 V, 16.7 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | bidirectional | |
| Pulse power loss | 500 W | |
| Rated blocking voltage | 15 V | |
| Breakdown voltage | 16.7 V | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C | |
| Assembly | SMD | |
| Enclosure | SOT-23 | |
| Capacity | 60 pF |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85411000 |
| Original Packaging | Bulk with 3,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
