3314J-1-103E | Bourns Electronics GmbH

Cermet trimmer potentiometer, 10 kΩ, 0.25 W, SMD, on top, 3314J-1-103E

Order No.: 76E3818
EAN: 4099879895196
MPN:
3314J-1-103E
Series: 3314J

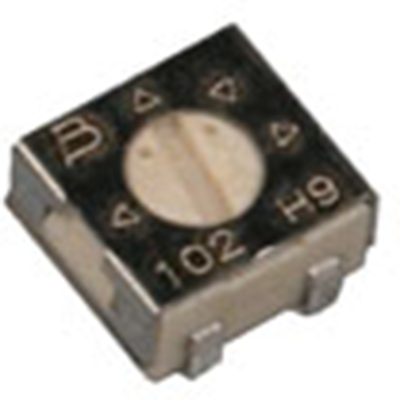

3314J-1-103E Bourns Electronics GmbH Trimmer Potentiometers Image 1
3314J-1-103E Bourns Electronics GmbH Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
2.0468 € *
Available: 1,489 pcs.
Total Price:
2.05 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0468 €
25 pcs.
1.7374 €
100 pcs.
1.6065 €
500 pcs.
1.4399 €
1000 pcs.
1.3804 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD Cermet trimmer potentiometer, 3314J-1-103E, Bourns

SMD Cermet trimmer potentiometer, 10 kΩ, 0.25 W

Features

  • Surface Mount / Single Turn / Cermet Industrial / Sealed
  • Compatible with surface mount manufacturing processes
  • Compatible with popular vacuum pick-and-place equipmen
  • Side adjust available

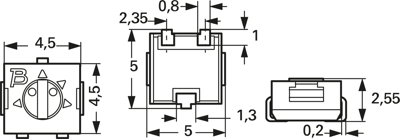

Technical specifications
Filter Property Value
Rotary range, electrical 210 °
Height 2.55 mm
min. operating temperature -55 °C
max. operating temperature 125 °C
Version cermet trimmer potentiometer
Connection J-hook
Assembly SMD
max. number of revolutions 1
Seeting on top
Power 0.25 W
Tolerance ±20 %
Temperature coefficient ±100 ppm/K
Width 4.5 mm
Mechanic rotary range 240 °
Contact distance RM 2.35
Length 4.5 mm
ohmic resistance 10 kΩ
Logistics
Property Value
Customs tariff number 85334010
Country of origin TW
Original Packaging Reel with 500 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
