3296W-1-252LF | Bourns Electronics GmbH
Cermet trimmer potentiometer, 25 turns, 2.5 kΩ, 0.5 W, THT, on top, 3296W-1-252LF
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.4994 € *
Standard delivery time from the manufacturer is: 16 Weeks

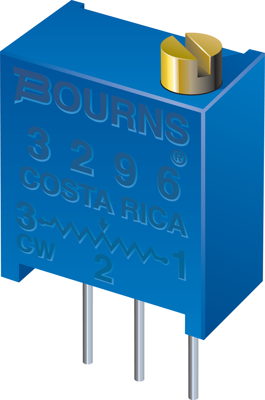

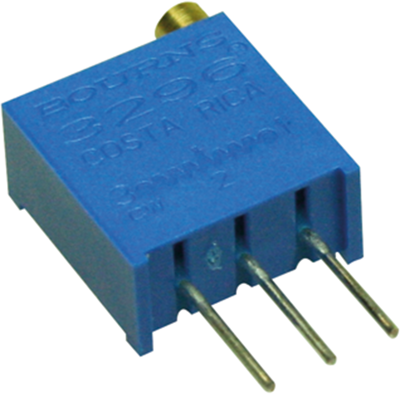

Cermet Trimmer potentiometer, with a Chevron seal design, 3296W-1-252LF, Bourns
Nominal size 3/8 inch (9.53 mm), vertical with top adjustment and contacts arranged in a single row, with 25 turns. Power rating: 0.5 W at +70 °C (0 W at +125 °C), operating voltage: max. 300 V, temperature range: -55 to +150 °C, tolerance: ±10%, temperature coefficient: ±100.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | cermet trimmer potentiometer | |
| ohmic resistance | 2.5 kΩ | |
| Tolerance | ±10 % | |
| Power | 0.5 W | |
| Assembly | THT | |
| Temperature coefficient | ±100 ppm/K | |
| Rotary range, electrical | 9000 ° | |
| max. number of revolutions | 25 | |
| Seeting | on top | |
| Connection | solder pin | |
| Contact distance | RM 2.54 | |

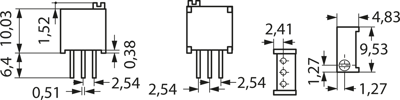

| Length | 9.53 mm | |
| Width | 4.83 mm | |
| Height | 10.03 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 100 pieces |
| Country of origin | CR |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
