3269X-1-203LF | Bourns Electronics GmbH
Cermet trimmer potentiometer, 12 turns, 20 kΩ, 0.25 W, SMD, lateral, 3269X-1-203LF
Unit Price (€ / pc.)
3.2368 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

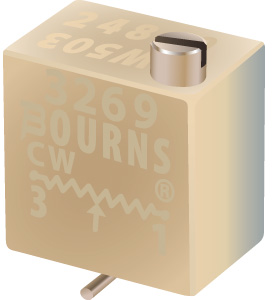

Trimming potentiometer, 3269X-1-203LF, Bourns Electronics GmbH
SMD trimming potentiometer. Square shape with a size of 1/4 inches. It features a stable and infinite resolution cermet element, making it highly precise. Additionally, it is compatible with surface mount manufacturing processes, ensuring easy integration into electronic devices. RoHS compliant, meeting the necessary environmental standards.

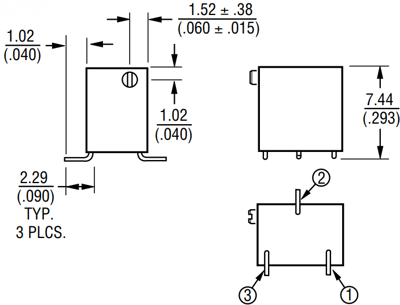

Technical specifications
| ohmic resistance | 20 kΩ | |
| Connection | gull-wing | |
| Version | cermet trimmer potentiometer | |
| Width | 4.32 mm | |
| Rotary range, electrical | 4320 ° | |
| Seeting | lateral | |
| Height | 7.44 mm | |
| Contact distance | RM 5.08 | |
| Length | 6.35 mm | |
| Power | 0.25 W | |
| max. number of revolutions | 12 | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -65 °C | |
| Assembly | SMD | |
| Tolerance | ±10 % | |
| Temperature coefficient | ±100 ppm/K |
Download
Logistics
| Country of origin | CR |
| Customs tariff number | 85334010 |
| MSL | MSL 2 |
| Original Packaging | Bar with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
