3224W-1-105E | Bourns Electronics GmbH

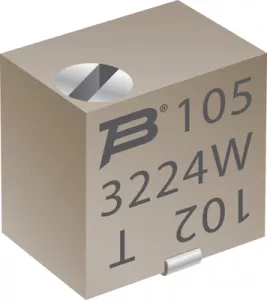

Cermet trimmer potentiometer, 12 turns, 1 MΩ, 0.25 W, SMD, on top, 3224W-1-105E
Unit Price (€ / pc.)
3.5224 € *
Available: 341 pcs.
Leadtime: 11 Weeks **
Total Price:
3.52 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5224 €
10 pcs.
3.1059 €
250 pcs.
2.7132 €
500 pcs.
2.6061 €
1000 pcs.
2.5109 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD Cermet trimmer potentiometer, 3224W-1-105E, Bourns
SMD Cermet trimmer potentiometer, 1 MΩ, 0.25 W
Features
- Surface Mount 4 mm Square / Multiturn Cermet / Industrial / Sealed
- Sealed to withstand board wash processing
- Pick and place centering design, with flush adjustment
Technical specifications
| Temperature coefficient | ±100 ppm/K | |
| max. number of revolutions | 12 | |
| Track Taper | linear | |
| Assembly | SMD | |
| Width | 3.5 mm | |
| Height | 5.3 mm | |
| Power | 0.25 W | |
| Length | 4.8 mm | |
| Contact distance | RM 2.5 | |
| Version | cermet trimmer potentiometer | |
| min. operating temperature | -65 °C | |
| Connection | J-hook | |
| Tolerance | ±10 % | |
| max. operating temperature | 150 °C | |
| Rotary range, electrical | 4320 ° | |
| ohmic resistance | 1 MΩ | |
| Seeting | on top |
Download
Logistics
| Country of origin | CR |
| Customs tariff number | 85334010 |
| MSL | MSL 2 |
| Original Packaging | Reel with 250 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
