CHV1206-JW-106ELF | Bourns Electronics GmbH
Resistor, thick film, SMD 1206 (3216), 10 MΩ, 0.25 W, ±5 %, CHV1206-JW-106ELF
Order No.: 05E3162
EAN: 4099879154552
MPN:
CHV1206-JW-106ELF
Unit Price (€ / pc.)
0.0440 € *
Available: 0 pcs.
Leadtime: 14 Weeks **

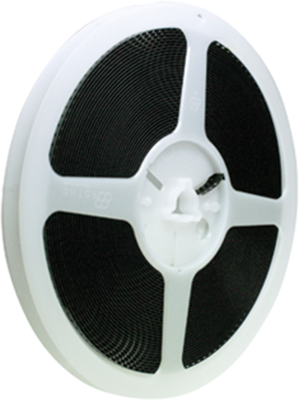

SMD thick-film resistors on original reels, type Bourns CHV.
For high voltages; Operating temperatures: –55 to +155 °C. Certifications: UL.
Size 1206.
Rated load at +70 °C: 0.25 W. Operating/overload voltage: max. 800/1600 V. Dimensions: 3.1 x 1.6 x 0.55 mm. Unit of measure: reel of 5000 items
Technical attributes (type, resistance value, temperature coefficient (TC), tolerance): 10M, TC ±200, 5.0 %
Technical specifications
| ohmic resistance | 10 MΩ | |
| Design | SMD 1206 (3216) | |
| Width | 1.6 mm | |
| Height | 0.65 mm | |
| Length | 3.1 mm | |
| Power | 0.25 W | |
| max. operating temperature | 155 °C | |
| min. operating temperature | -55 °C | |
| Tolerance | ±5 % | |
| Technology | thick film | |
| Temperature coefficient | ±200 ppm/K |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85332100 |
| MSL | MSL 1 |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
