PRS11R-225F-S103B1 | Bourns Electronics GmbH

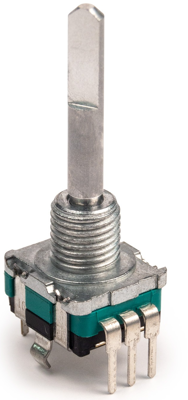

Rotary Metal Shaft Potentiometer, 10 kΩ, 0.05 W, linear, solder pin, PRS11R-225F-S103B1
Unit Price (€ / pc.)
3.6176 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
3.62 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6176 €
10 pcs.
3.1892 €
100 pcs.
2.7846 €
200 pcs.
2.6775 €
800 pcs.
2.5109 €
*incl. VAT plus shipping costs
**Subject to prior sale
Potentionmeter, PRS11R-225F-S103B1, Bourns
11 mm rotary metal shaft potentionmeter, with audio and linear tapers, flatted metal shaft option, available for vertical and horizontal mount option.
Features
- PC pin layout for board mount
- Flatted metal shaft option
- Horizontal and vertical mount option
Technical specifications
| ohmic resistance | 10 kΩ | |
| Connection | solder pin | |
| Version | Rotary Metal Shaft Potentiometer | |
| Mechanic rotary range | 300 ° | |
| axle diameter | 6 mm | |
| Contact distance | RM 2.5 | |
| Length | 11.7 mm | |
| Power | 0.05 W | |
| max. number of revolutions | 1 | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Assembly | angled | |
| Track Taper | linear |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85334010 |
| MSL | MSL 1 |
| Original Packaging | Tray with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
