3682S-1-103L | Bourns Electronics GmbH
Precision potentiometer, 10 turns, 10 kΩ, 2 W, linear, solder lug, 3682S-1-103L
Unit Price (€ / pc.)
30.5711 € *
Standard delivery time from the manufacturer is: 19 Weeks

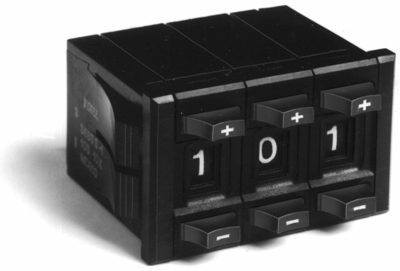

Precision Potentiometer, 3682S-1-103L, Bourns
Features
- Repeatable settings
- Resolution to 0.001 %
- Digital display provides excellent readability
- Snap-in panel mount
- RoHS compliant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 2 W | |
| max. operating temperature | 85 °C | |
| ohmic resistance | 10 kΩ | |
| Track Taper | linear | |
| Width | 23.62 mm | |
| min. operating temperature | -25 °C | |
| Version | precision potentiometer | |
| Connection | solder lug | |
| max. number of revolutions | 10 | |
| Length | 26.67 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85334010 |
| MSL | MSL 1 |
| Original Packaging | Bulk with 1 piece |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
