PEC12R-4025F-N0024 | Bourns Electronics GmbH
Incremental encoder, 5 V, impulses 24, PEC12R-4025F-N0024
Active
Product by Bourns Electronics GmbH at Bürklin Elektronik
Incremental encoders, type Bourns PEC12R.
Output: 2-bit quadrature code. Contact rating: 10 mA at 5.0 VDC. Insulation resistance: 10 Mohm. Rotary rate: max. 100/min. Operating temperatures: –30 to + 70 °C. Degree of protection: IP 40.
Horizontal, type PEC12R-..-N.

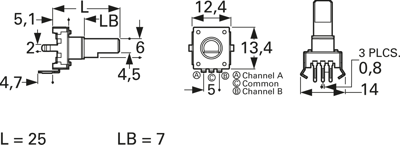

Technical attributes (type, detent, dimensions): PEC12R-4025F-N0024, none, L 25, LB 7.0 mm
| Version | Incremental encoder | |
| Voltage | 5 V | |
| Pulses per revolution | 24 |
| Country of origin | CN |
| Customs tariff number | 90318020 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
