Incremental encoder, 5 V, impulses 18, PEC11R-4125F-N0018
Unit Price (€ / pc.)
1.0829 € *
Standard delivery time from the manufacturer is: 18 Weeks
Incremental encoder, PEC11R-4125F-N0018, Bourns Electronics GmbH
Output: 2-bit quadrature code. Contact rating: 10 mA at 5.0 VDC. Insulation resistance: 100 Mohm. Rotary rate: max. 60/min. Operating temperatures: -30 to + 70 °C. Degree of protection: IP 40.
Type PEC11R-..-N..

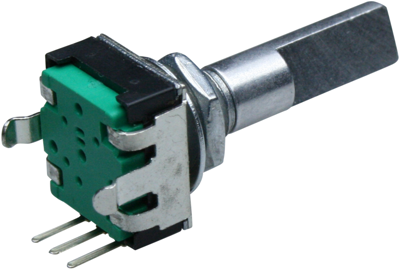

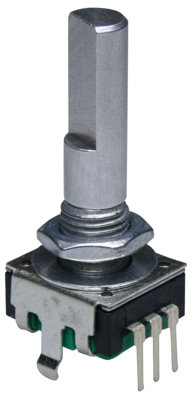

With flattened shaft.

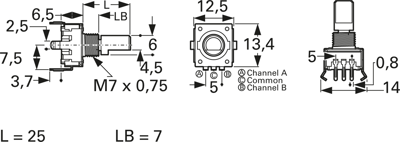

Technical attributes (type, detent, dimensions): PEC11R-4125F-N0018, 18, L 25, LB 7.0 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder pin | |
| Pulses per revolution | 18 | |
| Assembly | PCB mounting | |
| Product type | incremental encoder | |
| Length | 31.5 mm | |
| Voltage | 5 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90318020 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
