PEC11R-4120F-S0018 | Bourns Electronics GmbH
Incremental encoder, 5 V, impulses 18, PEC11R-4120F-S0018
Active
Product by Bourns Electronics GmbH at Bürklin Elektronik

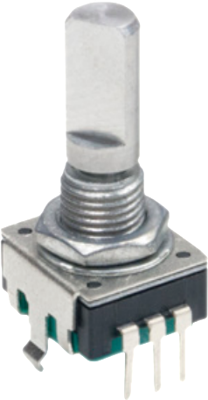

Incremental encoders, type Bourns PEC11R.
Output: 2-bit quadrature code. Contact rating: 10 mA at 5.0 VDC. Insulation resistance: 100 Mohm. Rotary rate: max. 60/min. Operating temperatures: –30 to + 70 °C. Degree of protection: IP 40.
Type PEC11R-..-S.
With flattened shaft and integrated momentary switch.

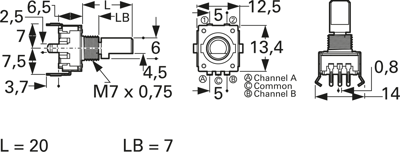

Technical attributes (type, detent, dimensions): PEC11R-4120F-S0018, 18, L 20, LB 7.0 mm
| Version | Incremental encoder | |
| Voltage | 5 V | |
| Pulses per revolution | 18 |
| Country of origin | CN |
| Customs tariff number | 90318020 |
| MSL | MSL 1 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
