PEC11R-4115K-S0018 | Bourns Electronics GmbH
Incremental encoder, 5 V, impulses 18, PEC11R-4115K-S0018
Unit Price (€ / pc.)
1.5708 € *
Standard delivery time from the manufacturer is: 18 Weeks

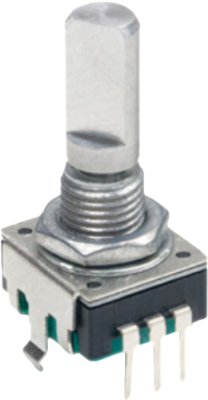

Incremental encoder, PEC11R-4115K-S0018, Bourns Electronics GmbH
Output: 2-bit quadrature code. Contact rating: 10 mA at 5.0 VDC. Insulation resistance: 100 Mohm. Rotary rate: max. 60/min. Operating temperatures: -30 to + 70 °C. Degree of protection: IP 40.
PEC11R-..-S..
With knurled shaft and integrated momentary switch.

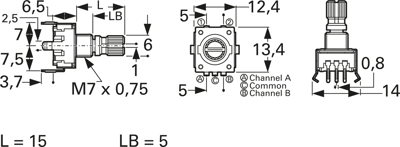

Technical attributes (type, detent, dimensions): PEC11R-4115K-S0018, 18, L 15, LB 5.0 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | incremental encoder | |
| Voltage | 5 V | |
| Pulses per revolution | 18 | |
| Connection | solder pin | |
| Assembly | PCB mounting | |
| Length | 21.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90318020 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
