82600124 | Bopla
ABS handheld enclosure, (L x W x H) 159.4 x 77.9 x 33.5 mm, gray (RAL 7024), IP40, 82600124
Unit Price (€ / pc.)
18.5759 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
18.58 € *
Price list
Quantity
Price per unit*
1 pcs.
18.5759 €
10 pcs.
16.3506 €
50 pcs.
15.2439 €
150 pcs.
14.5656 €
500 pcs.
13.8278 €
*incl. VAT plus shipping costs
**Subject to prior sale

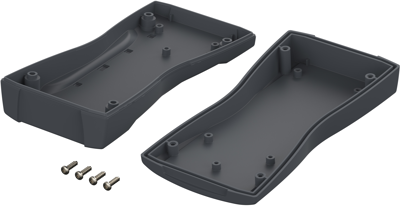

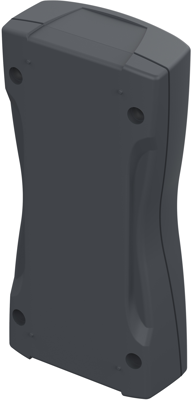

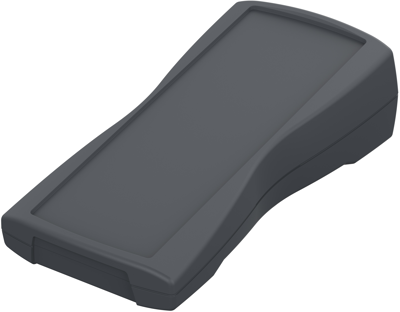

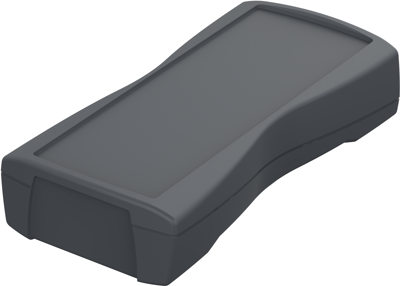

Portable enclosures made of plastic, type Bopla BOS-Streamline.
The two enclosure shells with separate oblique design allow parallel or desk type assembly of the top and bottom segments. The symmetrical design allows applications in vertical and horizontal format. Three different basic sizes, with or without battery compartment, type BS 403 F with compartment for 3 Micro (AAA) batteries, BS 603 F with compartment for 3 Mignon (AA) cells and BS 803 F with compartment for 4 Mignon (AA) cells; Material: ABS, color: graphite gray (RAL 7024). Degree of protection: IP 40, with decorative seal IP 65.
Technical attributes (type, outer dimensions (H2 and H3 = height for desk type assembly)): BS 600 F, L 159.4, W 77.9, H 33.5, H2 46.9, H3 20.3 mm
Technical specifications
| Width | 77.9 mm | |
| Colour | gray | |
| Height | 33.5 mm | |
| Length | 159.4 mm | |
| Material | ABS | |
| RAL number | 7024 | |
| Degree of protection (IP) | IP40 |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 39269097 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
