38110000 | Bopla

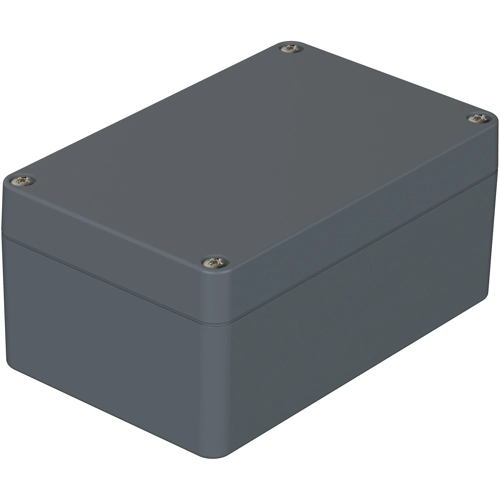

Polyamide enclosure, (L x W x H) 125 x 80 x 57 mm, silver grey (RAL 7001), IP65, 38110000
Active
Product by Bopla at Bürklin Elektronik
Plastic enclosures, type Bopla Polymas PK.

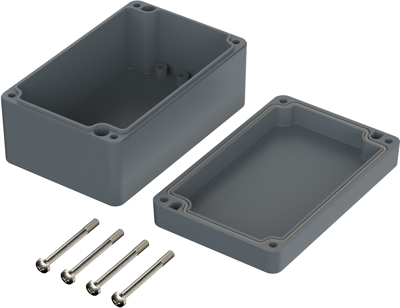

Made of glass ball-reinforced polyamide. Consist of the base shell and screw-on lid. Captive V2A lid screws. Lid with groove for an oil- and benzene-proof foamed neoprene or polyurethane string sealing; Color: gray (RAL 7001). Degree of protection: IP 65.
Technical attributes (type, outer dimension, lid height (LH)): PK 110, L 125, W 80, H 57 mm, LH 15
| Width | 80 mm | |
| Colour | silver grey | |
| Height | 57 mm | |
| Length | 125 mm | |
| Material | polyamide | |
| RAL number | 7001 | |
| Degree of protection (IP) | IP65 |
| Country of origin | RO |
| Customs tariff number | 39269097 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
