38102000 | Bopla
ABS enclosure, (L x W x H) 58 x 64 x 34 mm, gray (RAL 7035), IP65, 38102000
Active
Product by Bopla at Bürklin Elektronik

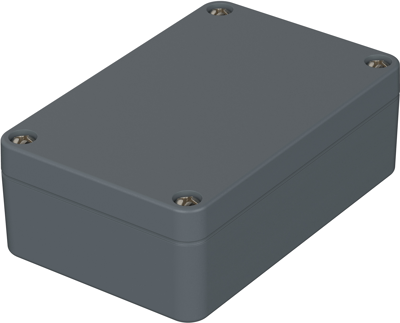

Plastic enclosures, type Bopla Polymas PK.

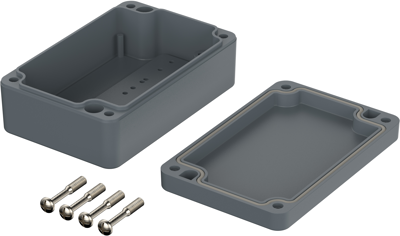

Made of glass ball-reinforced polyamide. Consist of the base shell and screw-on lid. Captive V2A lid screws. Lid with groove for an oil- and benzene-proof foamed neoprene or polyurethane string sealing; Color: gray (RAL 7001). Degree of protection: IP 65.
Technical attributes (type, outer dimension, lid height (LH)): PK 102, L 98, W 64, H 34 mm, LH 9.0
| Width | 64 mm | |
| Colour | gray | |
| Height | 34 mm | |
| Length | 58 mm | |
| Material | ABS | |
| RAL number | 7035 | |
| Degree of protection (IP) | IP65 |
| Country of origin | RO |
| Customs tariff number | 39269097 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
