38101200 | Bopla

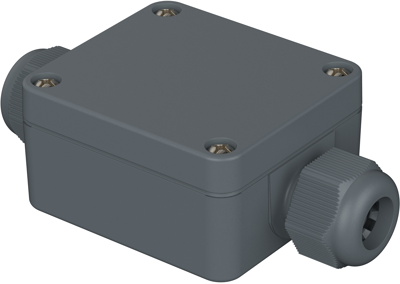

PA enclosure, (L x W x H) 58 x 64 x 34 mm, silver gray (RAL 7001), IP65, 38101200
Unit Price (€ / pc.)
23.0265 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
23.03 € *
Price list
Quantity
Price per unit*
1 pcs.
23.0265 €
10 pcs.
20.2538 €
50 pcs.
18.8734 €
150 pcs.
18.0642 €
500 pcs.
17.1241 €
*incl. VAT plus shipping costs
Subject to prior sale

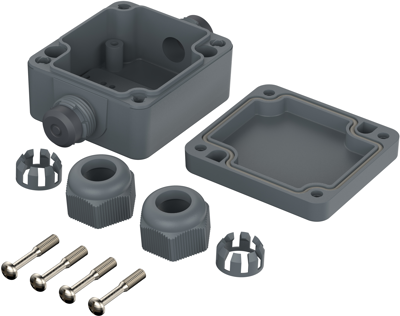

With 1 or 2 molded Pg 11 screwed cable glands, type PK 101.
Versions: type 111 with 1 screwed cable gland, type 211 with 2 screwed cable glands (1 per opposing side). Each one complete with integrated dust-protection pane.
Technical attributes (type, outer dimension, lid height (LH)): 211, 2 x Pg 11, L 58, W 64, H 34 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 34 mm | |
| Colour | silver gray | |
| Degree of protection (IP) | IP65 | |
| Material | PA | |
| Width | 64 mm | |
| RAL number | 7001 | |
| Length | 58 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
