08200000 | Bopla

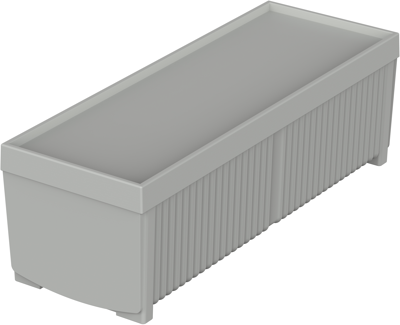

PA handheld enclosure, (L x W x H) 251 x 91 x 80 mm, light gray (RAL 7035), IP65, 08200000
Unit Price (€ / pc.)
52.8955 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
52.90 € *
Price list
Quantity
Price per unit*
1 pcs.
52.8955 €
10 pcs.
47.6238 €
50 pcs.
42.8519 €
100 pcs.
38.5560 €
*incl. VAT plus shipping costs
Subject to prior sale
Portable enclosures, plastic, type Bopla Tastomat TAS.

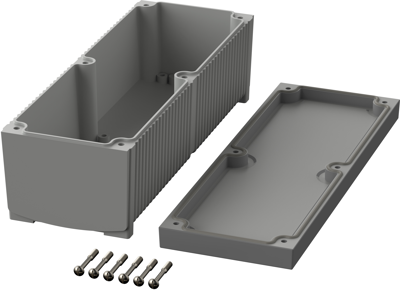

Portable enclosure for applications such as machine operator panels. Suitable for use in harsh environments. Cover with protective collar of 5.0 mm height for the protection of operating elements. Base shell with molded mounting cams. Screw mount from the bottom; Color: light gray (RAL 7035). Degree of protection: IP 65. Material: polyamide, glass ball-reinforced.
Technical attributes (type, outer dimension, lid height (H1)): TAS 200, L 251, W 91, H 80.4, H1 60.4 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 80 mm | |
| Colour | light gray | |
| Degree of protection (IP) | IP65 | |
| Material | PA | |
| Width | 91 mm | |
| RAL number | 7035 | |
| Length | 251 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
