STE 100/23/24 | Block

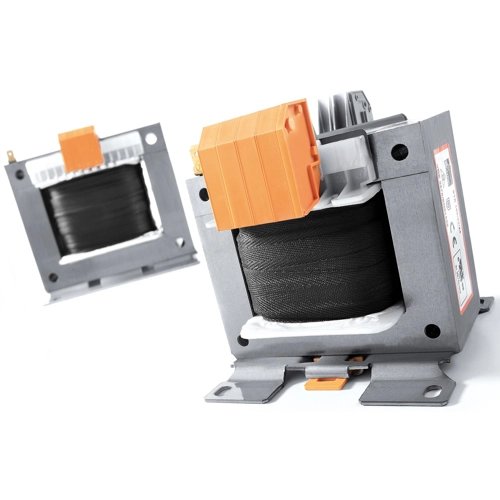

Control and safety transformer, 100 VA, 24 V, 87 %, STE 100/23/24
This item is no longer available.
As an alternative, we recommend the following item:
Control and isolating transformer, 100 VA, 115 V/115 V, 85 %, STSU 100/23
Order No.: 42C1239
Manufacturer: Block
per pc. 72.6614 € *
Control- and safety isolating transformer, STE 100/23/24, Block
As a safety isolating transformer for the safe electrical isolation of the input and output sides. The transformer is suitable for creating SELV and PELV circuits because of the limit on the output voltage.
Features
- Very good switch-on behaviour thanks to reduced starting currents
- High power density due to a compact construction design
- Primary side ±5 % tappings for voltage adjustment
- Very good corrosion protection and low noise thanks to vacuum impregnation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output power | 100 W | |
| Primary voltage | 230 V | |
| Secondary voltage (1) | 24 V | |
| efficiency | 87 % | |
| Length | 84 mm | |
| Width | 85 mm | |
| Height | 96 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
