ST 250/4/23 | Block

Control and isolating transformer, 250 VA, 230 V, 90 %, ST 250/4/23

Order No.: 40C180
EAN: 4099891344399
MPN:
ST 250/4/23
Series: ST
Block

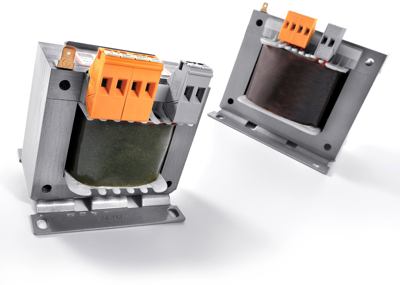

ST 250/4/23 Block Power Transformers Image 1
ST 250/4/23 Block Power Transformers Image 2
Image may differ
Print
Key Specification:
Output power 250 W
Primary voltage 400 V
Secondary voltage (1) 230 V
Show variants: 3
Download Datasheet Technical specifications
Unit Price (€ / pc.)
64.9026 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
64.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
64.9026 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Control or safety/isolating transformers w. low inrush current, type Block ST.

Suitable for operation as safety or control transformer to IEC 61558-2-6, EN 61558-2-6, VDE 0570 and UL 506. Isolating transformer to IEC 61558-2-4, EN 61558-2-4, VDE 0570

With rated power 250 VA, type ST 250.
Technical specifications
Output power 250 W
Primary voltage 400 V
Secondary voltage (1) 230 V
efficiency 90 %

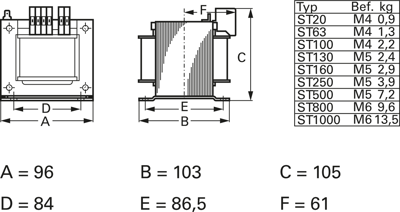

Length 96 mm
Width 103 mm
Height 105 mm
Articles of same specification 0
Logistics
Country of origin DE
Customs tariff number 85043180
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
