ST 20/23/23 | Block

Control and isolating transformer, 20 VA, 230 V, 81 %, ST 20/23/23

Order No.: 40C1610
EAN: 4099891344115
MPN:
ST 20/23/23
Series: ST
Block

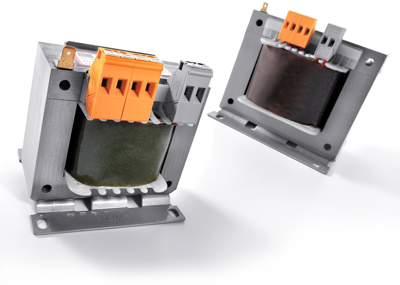

ST 20/23/23 Block Power Transformers Image 1
ST 20/23/23 Block Power Transformers Image 2
Image may differ
Print
Key Specification:
Output power 20 W
Primary voltage 230 V
Secondary voltage (1) 230 V
Show variants: 2
Download Datasheet Technical specifications

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)
36.9138 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
36.91 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
36.9138 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

Control or safety/isolating transformers w. low inrush current, type Block ST.

Suitable for operation as safety or control transformer to IEC 61558-2-6, EN 61558-2-6, VDE 0570 and UL 506. Isolating transformer to IEC 61558-2-4, EN 61558-2-4, VDE 0570

With rated power 20 VA, type ST 20.
Technical specifications
Output power 20 W
Primary voltage 230 V
Secondary voltage (1) 230 V
efficiency 81 %

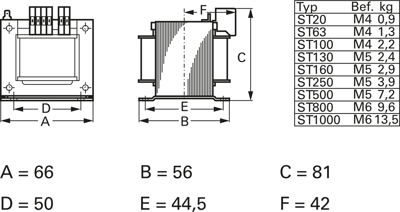

Length 66 mm
Width 56 mm
Height 81 mm
Articles of same specification 0
Logistics
Customs tariff number 85043180
Country of origin DE
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
