FL 8/18 | Block
PCB flat transformer, 8 VA, 18 V/18 V, 222 mA/222 mA, 76 %, FL 8/18
Unit Price (€ / pc.)
23.6453 € *
Next delivery: 10 pcs. on 2026-01-30
Total Price:
23.65 € *
Price list
Quantity
Price per unit*
1 pcs.
23.6453 €
10 pcs.
20.8012 €
50 pcs.
19.3851 €
150 pcs.
18.5283 €
500 pcs.
17.5882 €
*incl. VAT plus shipping costs
Subject to prior sale

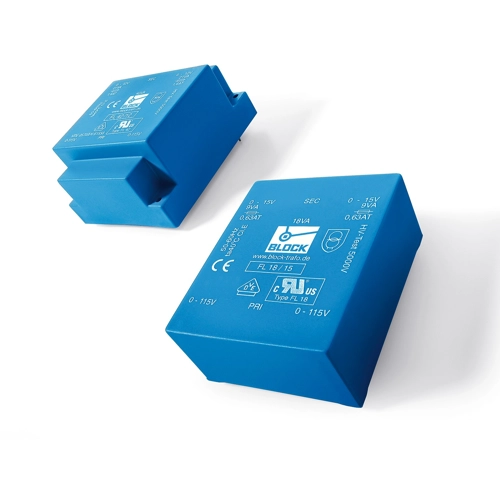

PCB transformers, flat, type Block FL.
Safety transformer for PCB mounting, epoxy resin molded plastic housing (self-extinguishing to UL 94 V-0)
Rated power 8.0 VA, type FL 8.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output power | 8 W | |
| Primary voltage | 2 x 115 V | |
| Secondary voltage (1) | 18 V | |
| Secondary voltage (2) | 18 V | |
| Secondary amperage 1 | 222 mA | |
| secondary amperage 2 | 222 mA | |
| efficiency | 76 % | |
| Length | 53 mm | |
| Width | 44 mm | |
| Height | 22.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
