PC-0224-050-0 | Block

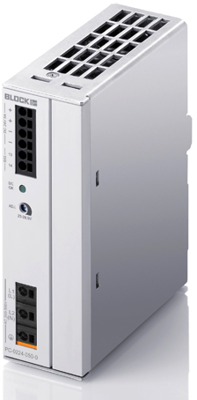

Power supply, 23 to 28.5 VDC, 5 A, 120 W, PC-0224-050-0
Order No.: 42C1054
EAN: 4099891285258
MPN:
PC-0224-050-0
Unit Price (€ / pc.)
131.3998 € *
Standard delivery time from the manufacturer is: 3 Weeks
Power supply, PC-0224-050-0, Block
Primary switching power supply.
Features
- Possibility of parallel connection
- Optionally with 50 % power increase
- Resistant to transient overvoltages up to 4 kV
- Robust DIN rail mounting
- Pluggable terminals
- Fast tripping of conventional circuit breakers
Applications
- Solar
- Measurement and control technology
- Building automation
- Industrial
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Width | 42 mm | |
| Depth | 126 mm | |
| Output voltage DC | 23 to 28.5 VDC | |
| Degree of protection (IP) | IP20 | |
| efficiency | 89 % | |
| Output current | 5 A | |
| Power | 120 W | |
| Input voltage AC | 180-550 VAC, 254-780 VDC | |
| Height | 127 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85043180 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
