1506208 | BKL Electronic
PUR Spiral cable Li12Y11Y 8 x 0.14 mm², unshielded, black
Unit Price (€ / pc.)
66.4020 € *
Available: 1 pcs.
Leadtime: 3 Weeks **
Total Price:
66.40 € *
Price list
Quantity
Price per unit*
1 pcs.
66.4020 €
5 pcs.
62.7130 €
10 pcs.
59.0240 €
50 pcs.
55.3469 €
100 pcs.
51.6579 €
*incl. VAT plus shipping costs
**Subject to prior sale

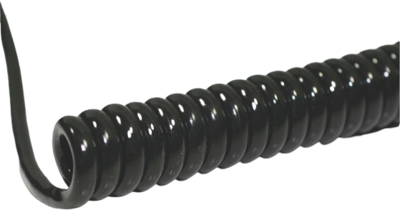

Spiral cable, 1506208, BKL Elektronic
Spiral cable, extension length 4800 mm, diameter 5.2 x 0.3 mm, spiral diameter 19-23 mm, cross section 8 x 0.14 mm², polyurethane, black.
Technical specifications
| Core insulation material | TPE | |
| Core colour sequence | DIN 47100 | |
| Number of cores | 8 | |
| Version | Spiral cable | |
| Outer diameter | 5.2 mm | |
| Colour | black | |
| Halogen free | Yes | |
| Cable material | copper | |
| Cable cross-section | 0.14 mm² | |
| Material | PUR | |
| Rated voltage | 300 V | |
| Test voltage | 2 kV | |
| Shielding | unshielded | |
| Temperature range (active) | -30 °C to 80 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
