1506102 | BKL Electronic
PUR Spiral cable H05BQ-F 4 x 0.75 mm², unshielded, orange
Unit Price (€ / pc.)
70.5551 € *
Available: 1 pcs.
Leadtime: 3 Weeks **
Total Price:
70.56 € *
Price list
Quantity
Price per unit*
1 pcs.
70.5551 €
5 pcs.
66.3187 €
15 pcs.
63.7840 €
50 pcs.
60.9637 €
150 pcs.
58.4171 €
*incl. VAT plus shipping costs
**Subject to prior sale

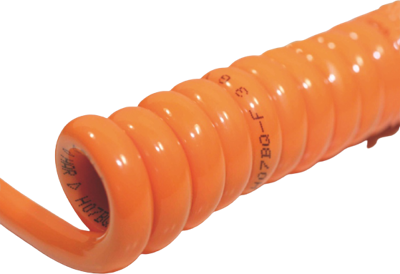

Spiral cable, 1506102, BKL Elektronic
Spiral cable, extension length 4800 mm, diameter 6.8 x 8.8 mm, spiral diameter 26-30 mm, cross section 4 x 0.75 mm², polyurethane, orange.
Technical specifications
| Number of cores | 4 | |
| Version | Spiral cable | |
| Outer diameter | 8.8 mm | |
| Colour | orange | |
| Halogen free | Yes | |
| Cable material | copper | |
| Cable cross-section | 0.75 mm² | |
| Material | PUR | |
| Rated voltage | 500 V | |
| Shielding | unshielded | |
| Temperature range (active) | -40 °C to 90 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
