1506101 | BKL Electronic

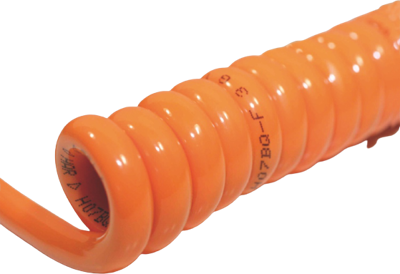

PUR spiral cord H05BQ-F 4 x 0.75 mm², unshielded, orange, 1506101
Unit Price (€ / pc.)
51.7888 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
51.79 € *
Price list
Quantity
Price per unit*
1 pcs.
51.7888 €
5 pcs.
48.7424 €
10 pcs.
45.6960 €
25 pcs.
42.6496 €
50 pcs.
39.6032 €
*incl. VAT plus shipping costs
Subject to prior sale
Spiral cable, 1506101, BKL Elektronic
Spiral cable, extension length 3200 mm, diameter 6.8 x 8.8 mm, spiral diameter 26-30 mm, cross section 4 x 0.75 mm², polyurethane, orange.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PUR | |
| Rated voltage | 300 V | |
| Core colour sequence | DIN 47100 | |
| Cable material | copper | |
| Test voltage | 2 kV | |
| Product type | spiral cord | |
| Temperature range (active) | -30 °C to 80 °C | |
| Number of cores | 4 | |
| Core insulation material | TPE | |
| Shielding | unshielded | |
| Halogen free | Yes | |
| Colour | orange | |
| Outer diameter | 8.8 mm | |
| Cable cross-section | 0.75 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
