H-LS-210 | BJZ
ESD PCB stand, (L x W) 272 x 208 mm, H-LS-210
Order No.: 07L3334
EAN: 4099891420123
MPN:
H-LS-210
Unit Price (€ / pc.)
31.1304 € *
Available: 5 pcs.
Leadtime: 3 Weeks **
Total Price:
31.13 € *
Price list
Quantity
Price per unit*
1 pcs.
31.1304 €
5 pcs.
29.2621 €
15 pcs.
28.1435 €
50 pcs.
26.8940 €
150 pcs.
25.7754 €
*incl. VAT plus shipping costs
**Subject to prior sale

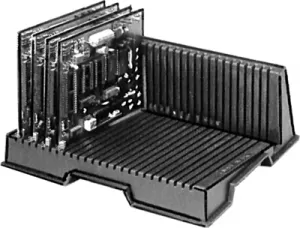

Conductive PCB racks, type BJZ H-LS-.
The PCBs are held firmly and easily at the base and on the sides. The inclination of the boards prevents the PCB from slipping off easily and, if wet, favors draining of residual liquids via drain holes. Surface resistance; conductive version: 1.0 kohm. Number of PCBs: maximum 25. Material: polypropylene. PCB thickness: design 1 = 3.2 mm, design 2 = 2.4 mm. Dimensions: design 1 = 272 x 208 x 93 mm, design 2 = 268 x 355 x 128 mm.
Type: H-LS-210, design 1, black
Technical specifications
| Version | PCB stand | |
| Width | 208 mm | |
| ESD protection | Yes | |
| Length | 272 mm | |
| Material | polypropylene |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 39231090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
