99 3732 402 04 | binder
Panel socket, M12, 4 pole, SMD, screw locking, straight, 99 3732 402 04
Unit Price (€ / pc.)
12.0428 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
12.04 € *
Price list
Quantity
Price per unit*
1 pcs.
12.0428 €
10 pcs.
11.2098 €
50 pcs.
10.4125 €
100 pcs.
9.3653 €
*incl. VAT plus shipping costs
Subject to prior sale

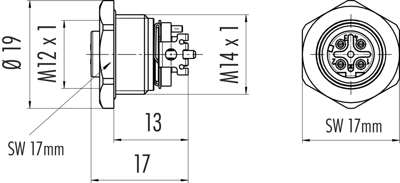

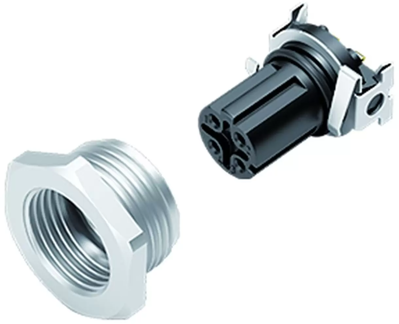

Female panel mount connector, 99 3732 402 04, binder
M12-D Female panel mount connector, Contacts: 4, shieldable, SMT, IP67.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | SMD | |
| Degree of protection (IP) | IP67 | |
| Coding | D | |
| Orientation | straight | |
| Assembly | panel mounting | |
| Additional parts | equipped | |
| Pin number | 4 pole | |
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Thread size | M12 | |
| Product type | panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
