99 3481 458 08 | binder

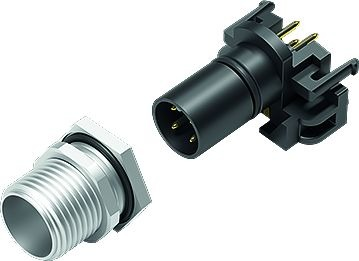

Name: Panel plug, M12, 8 pole, THR, Screw locking, straight, 99 3481 458 08
Brand: binder
SKU: 66P4110
Price: 13.16 EUR
Availability: InStock

Panel plug, M12, 8 pole, THR, Screw locking, straight, 99 3481 458 08

Order No.: 66P4110

MPN:

99 3481 458 08

Series: 763

EAN: 4099879117427

Images may differ

Key Specification:

Version panel plug

Pin number 8 pole

Thread size M12

Coding A

Type of locking Screw locking

Show 3 variants

Technical specifications Download Datasheet

Unit Price (€ / pc.)

13.1614 € *

Available: 10 pcs.

Leadtime: 12 Weeks **

Total Price:

13.16 € *

Quantity

Price per unit*

1 pcs.

13.1614 €

10 pcs.

11.5906 €

50 pcs.

10.7933 €

150 pcs.

10.3173 €

500 pcs.

9.7937 €

*incl. VAT plus shipping costs

**Subject to prior sale

Add to comparison list Print

Description

Male panel mount connector, 99-3481-458-08, Franz Binder

M12-A Male connector, poles 8, shieldable, THR, IP68, UL, for PCB assembly

Technical specifications

Show similar products (0)

Download

Technical Data Sheet - EN

Technical Data Sheet

Declaration of Conformity - EN

Declaration of Conformity

Technical Data Sheet - DE

Technical Data Sheet

Declaration of Conformity - DE

Declaration of Conformity

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	Lead

On our category pages and product pages you will find the following green symbols:

Available via download:

Schematic symbols
PCB footprints
3D models

Schematic symbols and PCB footprints are available

Available via download:

Schematic symbols
PCB footprints

No models are currently available

Circuit diagram symbols and PCB footprint can be requested by clicking on the icon for the respective product.

Country	Runtime days	Freight excl. VAT	Freight incl. VAT
Germany	1	6,90 €	8,21 €
Austria	1-2	8,30 €	9,88 €
Switzerland	1-2	16,40 €	19,52 €

	Version	panel plug
	Thread size	M12
	Coding	A
	Contact connection	THR
	contact surface	gold-plated
	Assembly	panel mounting
	Orientation	straight
	Pin number	8 pole
	Degree of protection (IP)	IP68
	Type of locking	Screw locking
