99 3441 200 05 | binder

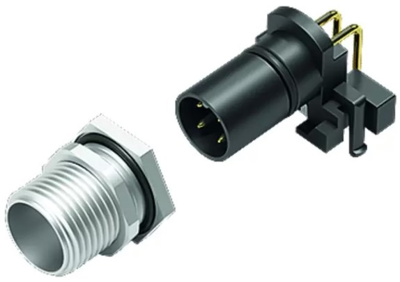

Panel plug, M12, 5 pole, THR, screw locking, straight, 99 3441 200 05

Order No.: 66P4086
EAN: 4099889701371
MPN:
99 3441 200 05
Series: 763
99 3441 200 05 binder Sensor-Actuator Connectors
Image may differ
Unit Price (€ / pc.)
9.1511 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
9.15 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1511 €
10 pcs.
8.0444 €
100 pcs.
7.0686 €
250 pcs.
6.7830 €
1000 pcs.
6.3546 €
*incl. VAT plus shipping costs
Subject to prior sale

Sensor-actuator connector, 99-3441-200-05, BINDER

M12-A Male panel mount connector, Contacts: 5, unshielded, THR, IP68, UL, for PCB assembly.

Features

  • Contact material: CuZn
  • Degree of protection: IP68
  • Pollution degree: 3
  • Overvoltage category: I
Technical specifications
Filter Property Value
Product type panel plug
Degree of protection (IP) IP68
Orientation straight
Pin number 5 pole
Coding A
Contact connection THR
contact surface gold-plated
Assembly panel mounting
Thread size M12
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin HU
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
