99 0436 69 05 | binder

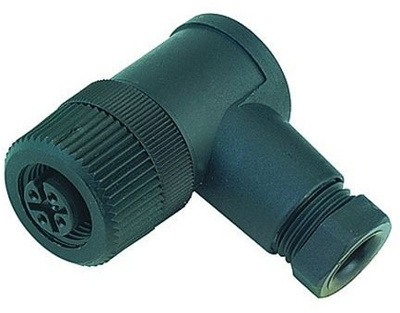

Jack, M12, 5 pole, screw connection, Screw locking, angled, 99 0436 69 05
Images may differ
Unit Price (€ / pc.)
15.7556 € *
Available: 2 pcs.
Leadtime: 4 Weeks **
Total Price:
15.76 € *
Quantity
Price per unit*
1 pcs.
15.7556 €
10 pcs.
13.8754 €
50 pcs.
12.9234 €
150 pcs.
12.3522 €
500 pcs.
11.7215 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Sensor-actuator connector, 99-0436-69-05, BINDER
M12-A Female angled connector, Contacts: 5, 6.0-8.0 mm, unshielded, screw clamp, IP67, UL, PG 9.
Features
- Contact material: CuZn
- Degree of protection: IP67
- Pollution degree: 3
- Overvoltage category: II
Technical specifications
| Version | jack | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | screw connection | |
| contact surface | CuSnZn | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | Screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
