99 3400 550 03 | binder
Jack, M8, 3 pole, IDC connection, screw locking, straight, 99 3400 550 03
Unit Price (€ / pc.)
14.0063 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
14.01 € *
Price list
Quantity
Price per unit*
1 pcs.
14.0063 €
10 pcs.
13.0186 €
50 pcs.
12.1142 €
100 pcs.
10.9123 €
*incl. VAT plus shipping costs
Subject to prior sale

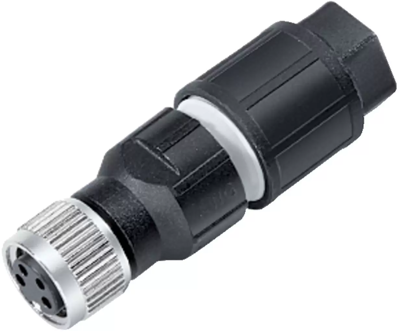

Female cable connector, 99 3400 550 03, binder
M8 Female cable connector, Contacts: 3, 2.5-5.0 mm, unshielded, cutting clamp, IP67, UL.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Contact connection | IDC connection | |
| Pin number | 3 pole | |
| Product type | jack | |
| Degree of protection (IP) | IP67 | |
| contact surface | gold-plated | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Assembly | cable assembly | |
| Thread size | M8 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
