99 3376 500 04 | binder

Jack, M8, 4 pole, IDC connection, screw locking, straight, 99 3376 500 04

Order No.: 70P1961
EAN: 4099891677138
MPN:
99 3376 500 04
Series: 768
binder

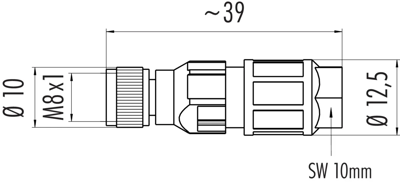

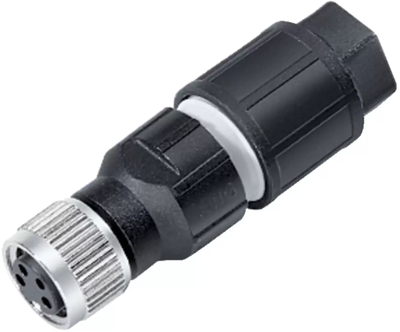

99 3376 500 04 binder Sensor-Actuator Connectors Image 1
99 3376 500 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.6136 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
13.61 € *
Price list
Quantity
Price per unit*
1 pcs.
13.6136 €
10 pcs.
12.6735 €
50 pcs.
11.7810 €
100 pcs.
10.9599 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female cable connector, 99 3376 500 04, binder

M8 Female cable connector, Contacts: 4, 2.5-5.0 mm, unshielded, cutting clamp, IP67, UL.

Technical specifications
Version jack
Additional parts equipped
Thread size M8
Contact connection IDC connection
contact surface gold-plated
Assembly cable assembly
Orientation straight
Pin number 4 pole
Degree of protection (IP) IP67
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
