99 3376 550 04 | binder

Jack, M8, 4 pole, IDC connection, screw locking, straight, 99 3376 550 04

Order No.: 70P1962
EAN: 4099891677145
MPN:
99 3376 550 04
Series: 768

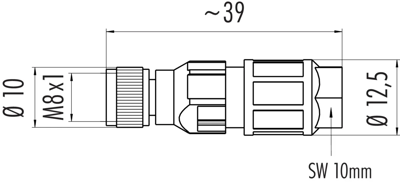

99 3376 550 04 binder Sensor-Actuator Connectors Image 1

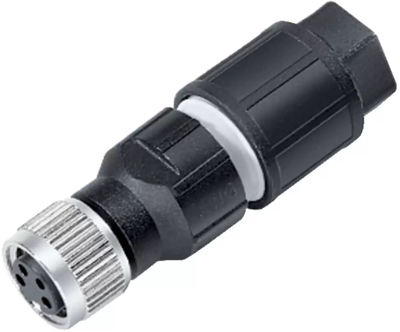

99 3376 550 04 binder Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.6965 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
14.70 € *
Price list
Quantity
Price per unit*
1 pcs.
14.6965 €
10 pcs.
13.6612 €
50 pcs.
12.7092 €
100 pcs.
11.8048 €
*incl. VAT plus shipping costs
Subject to prior sale

Female cable connector, 99 3376 550 04, binder

M8 Female cable connector, Contacts: 4, 2.5-5.0 mm, unshielded, cutting clamp, IP67, UL.

Technical specifications
Pin number 4 pole
Type of locking screw locking
Additional parts equipped
Contact connection IDC connection
Product type jack
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M8
contact surface gold-plated
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
