99 3360 00 03 | binder

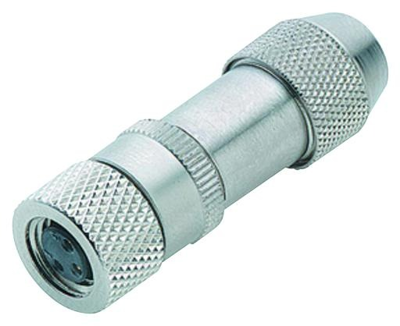

Jack, M8, 3 pole, solder connection, screw locking, straight, 99 3360 00 03
Unit Price (€ / pc.)
16.2197 € *
Available: 58 pcs.
Total Price:
16.22 € *
Price list
Quantity
Price per unit*
1 pcs.
16.2197 €
10 pcs.
14.2681 €
50 pcs.
13.3042 €
150 pcs.
12.7092 €
500 pcs.
12.0785 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector for sensor, M 8, type Binder 768.
With solder terminals; Conductor-cross-sections: 0.25 mm². Cable outlet: 3.5 to 5.0 mm. Rated voltage: 60 V. Rated current (+40 °C): 4.0 A. Test surge voltage: 910 V. Contact resistance: max.3.0 mohm. Insulation resistance: 10 Gohm. Housing degree of protection: IP 67. Degree of soiling: 3. Overvoltage category: II. Contacts: copper tin. Finish: gold-plated. Housing: CuZn nickel-plated. Operating temperatures: - 40 to +85 °C.
Female cable connectors, shielded, with solder terminals.
Technical attributes (type, number of poles): 99-3360-00-03, 3-pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| Thread size | M8 | |
| Orientation | straight | |
| Degree of protection (IP) | IP67 | |
| Product type | jack | |
| Pin number | 3 pole | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
