99 1436 920 05 | binder

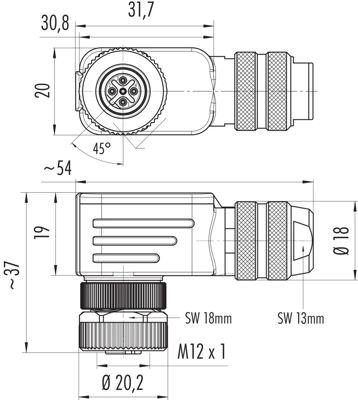

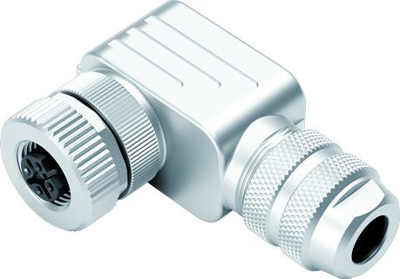

Jack, M12, 5 pole, screw connection, Screw locking, angled, 99 1436 920 05
Images may differ
Unit Price (€ / pc.)
35.5810 € *
Available: 55 pcs.
Leadtime: 12 Weeks **
Total Price:
35.58 € *
Quantity
Price per unit*
1 pcs.
35.5810 €
5 pcs.
33.4390 €
15 pcs.
32.1657 €
50 pcs.
30.7377 €
150 pcs.
29.4644 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Female angled connector, 99-1436-820-05, Franz Binder
M12-B Female connector, poles 5, 6.0-8.0 mm, shieldable, screw clamp, IP67, UL
Technical specifications
| Version | jack | |
| Thread size | M12 | |
| Coding | B | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 5 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | Screw locking |
Download
Logistics
| Country of origin | HU |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
