99 1430 824 04 | binder

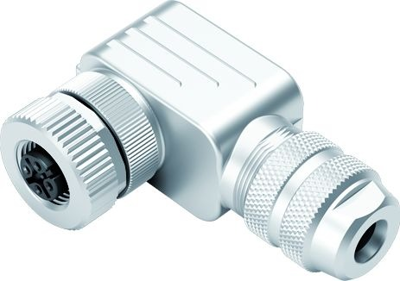

Jack, M12, 4 pole, screw connection, Screw locking, angled, 99 1430 824 04
Images may differ
Unit Price (€ / pc.)
31.2851 € *
Available: 50 pcs.
Leadtime: 4 Weeks **
Total Price:
31.29 € *
Quantity
Price per unit*
1 pcs.
31.2851 €
10 pcs.
27.5366 €
50 pcs.
25.6445 €
150 pcs.
24.5259 €
500 pcs.
23.2764 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Female angled connector, 99-1430-824-04, Franz Binder
M12-A Female connector, poles 4, 4.0-6.0 mm, shieldable, screw clamp, IP67, UL
Technical specifications
| Version | jack | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | screw connection | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Pin number | 4 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | Screw locking |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
