99 1429 814 04 | binder

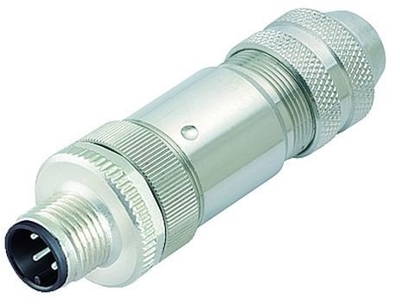

Plug, M12, 4 pole, screw connection, screw locking, straight, 99 1429 814 04
Unit Price (€ / pc.)
20.4561 € *
Available: 0 pcs.
Next delivery: 32 pcs. on 2025-05-26
Leadtime: On Request **
Total Price:
20.46 € *
Price list
Quantity
Price per unit*
1 pcs.
20.4561 €
10 pcs.
17.9928 €
50 pcs.
16.7671 €
150 pcs.
16.0531 €
500 pcs.
15.2201 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sensor-actuator connector, 99-1429-814-04, BINDER
M12-A Male cable connector, Contacts: 4, 4.0-6.0 mm, shieldable, screw clamp, IP67, UL.
Features
- Contact material: CuZn
- Degree of protection: IP40
- Pollution degree: 3
- Overvoltage category: II
Technical specifications
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Coding | A | |
| Degree of protection (IP) | IP67 | |
| Assembly | cable assembly | |
| Contact connection | screw connection | |
| Pin number | 4 pole | |
| Version | plug | |
| Orientation | straight | |
| Thread size | M12 |
Download
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
